TradeWeld

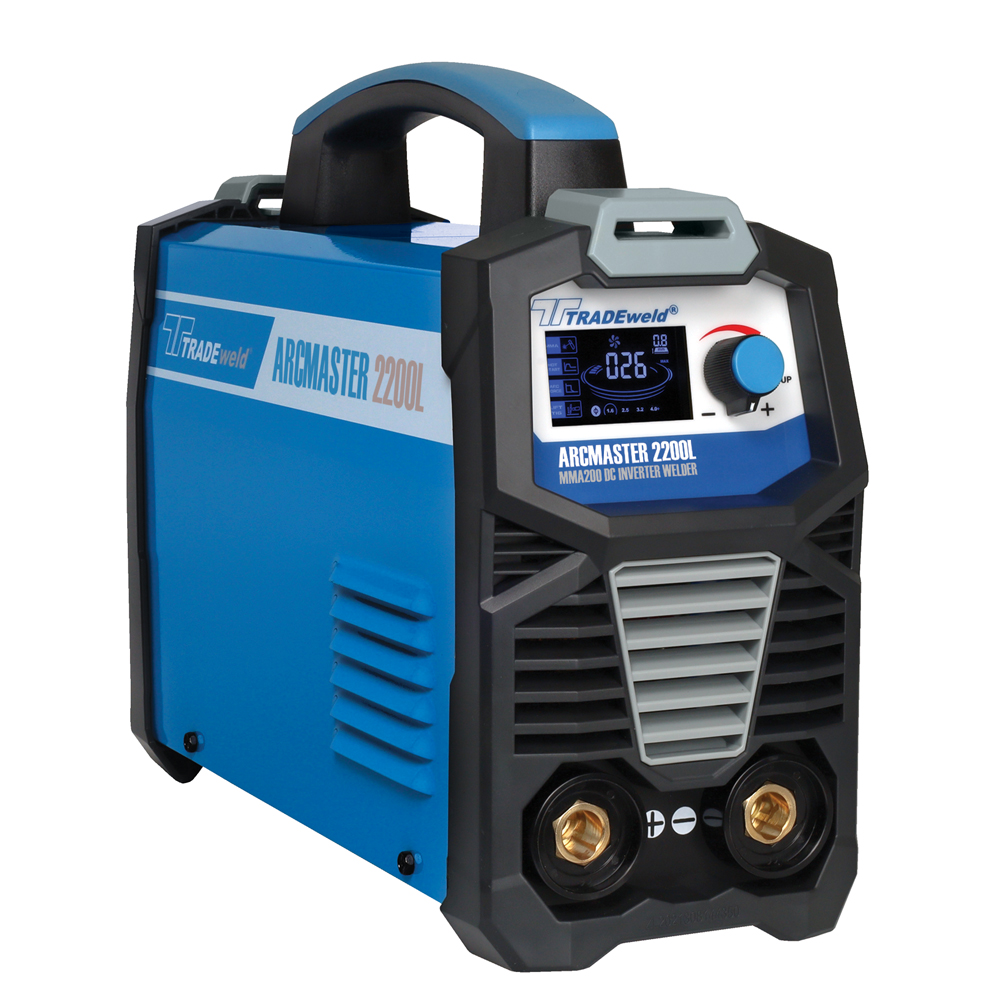

ARCMASTER INVERTER WELDER 2200L -220V

MCOW4023

SKU: MCOW4023 Categories: ,
Features and Specifications

Features
Manufactured to the highest standards using advanced IGBT-Inverter Technology.

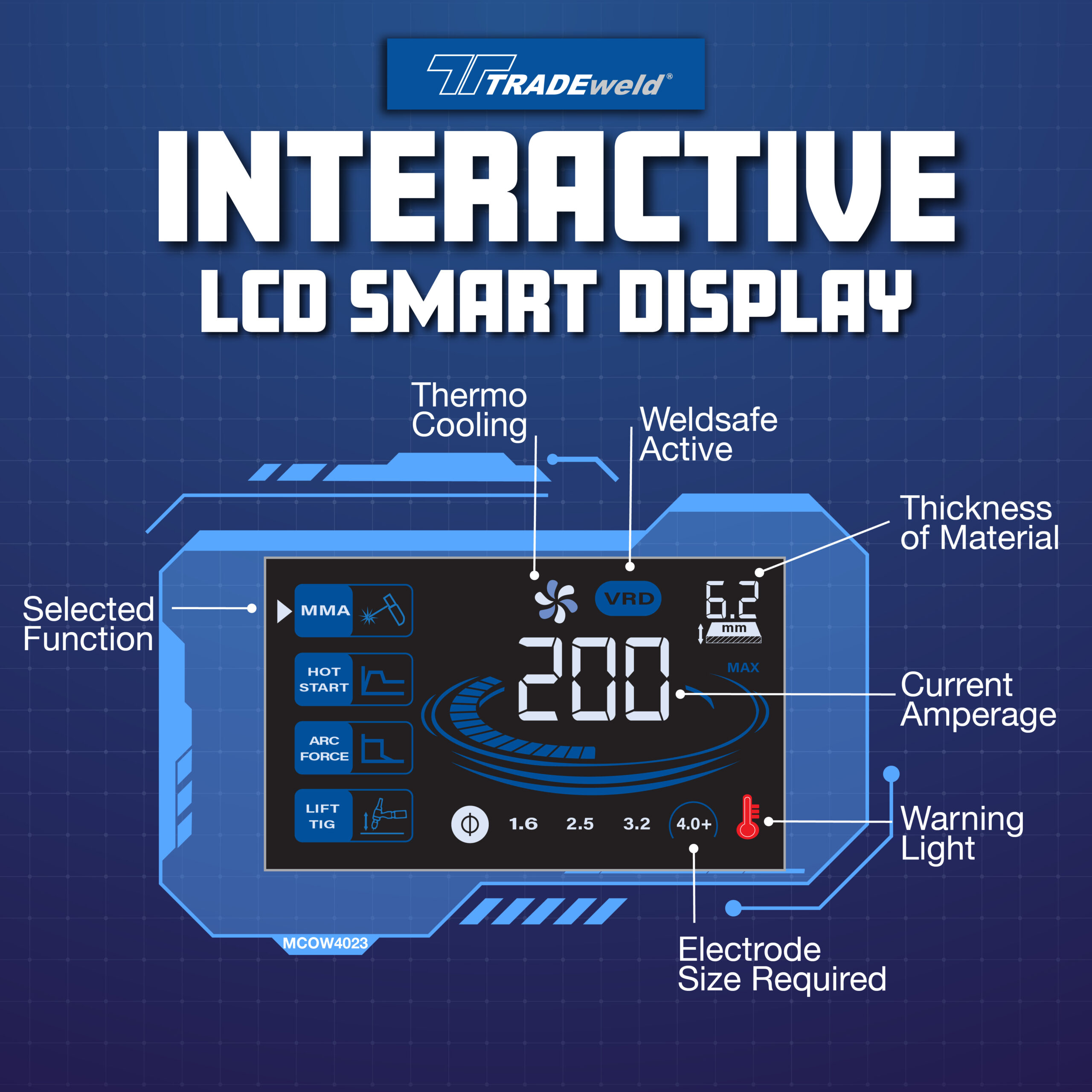

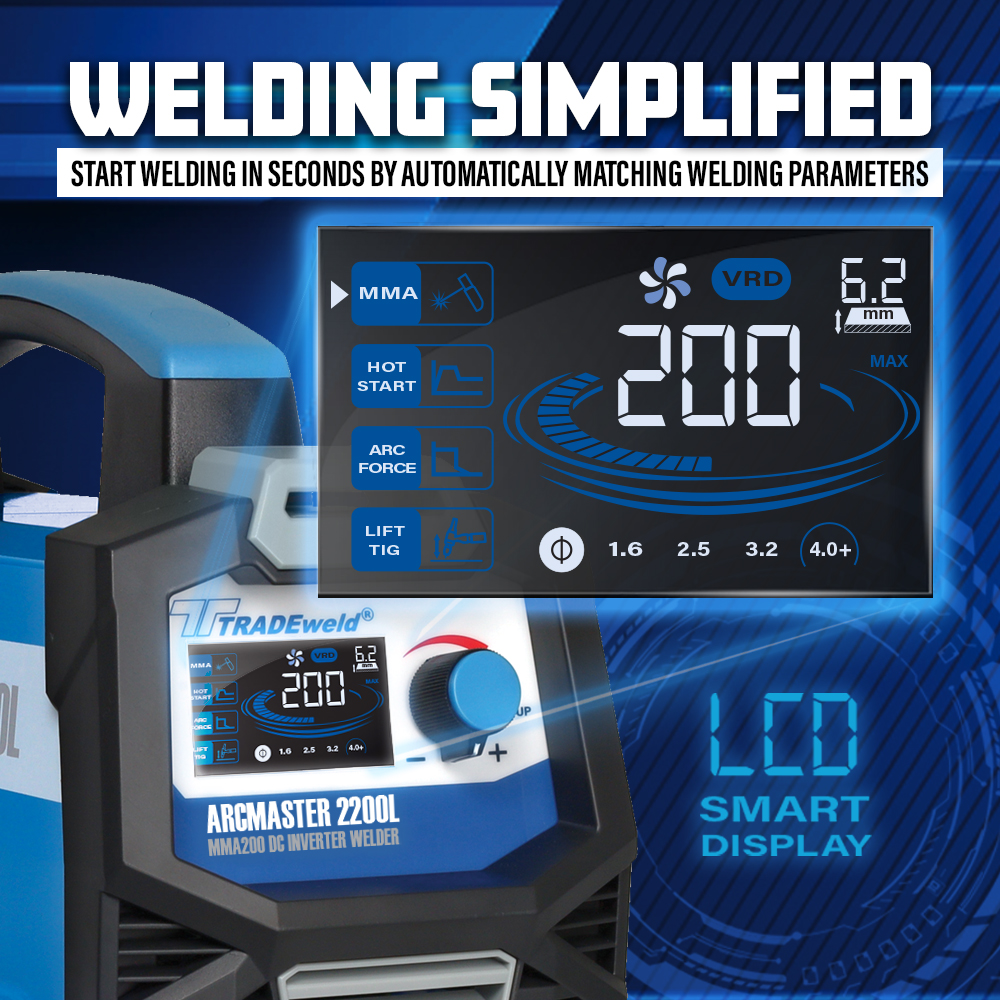

• LCD Smart Display
• Compact, Lightweight & Portable
• DC Current Output
• Excellent Welding Characteristics
• Less Power ConsumPTion
• Robust Construction
• Hot Start
• ARC Force
• Welding rod size indicator
• Steel size indicator
• VRD
• LIFT TIG
• 2 Year Warranty

Specifications
Rated Input Voltage: AC220V±10% 1Phase
Frequency(Hz): 50/60
Rated Input Current (A): 32.3A
Output Current (P): 200A
Rated Output voltage:28V
No Load voltage: 60V
VRD Voltage: 14V
Duty Cycle: 60%
Efficiency(%):85
Power Factor: 0.93
Protection Class: IP21S
Cooling Method: Fan-cooled

What's in the box
  • 1x Welding Machine
  • 1x Set of Cables
  • 1x Handheld Face Shield
  • 1x Wire Brush
Made from / Composition
  • METAL
Colour
  • BLUE/BLACK
Warranty
  • 24 MONTHS
Barcode
  • 6009553204358

Reviews

There are no reviews yet.

Be the first to review “ARCMASTER INVERTER WELDER 2200L -220V”

Your email address will not be published. Required fields are marked *

Find a Store
OUTER CARTON - SMALLER PRODUCTS THAT CAN BE PACKED IN ANOTHER BOX
QTY
0.0
HEIGHT
0.0 CM
WIDTH
0.0 CM
LENGTH
0.0 CM
WEIGHT
0.0 KG
INNER CARTON - THE PRODUCTS IS PACKED IN AN OUTER CARTON
QTY
0.0
HEIGHT
0.0 CM
WIDTH
0.0 CM
LENGTH
0.0 CM
WEIGHT
0.0 KG
PACKAGING (CARTON OR BLISTER)
HEIGHT
32.0 CM
WIDTH
25.0 CM
LENGTH
42.5 CM
WEIGHT
5.69 KG
PRODUCT ONLY - PRODUCT ONLY OUTSIDE OF THE BOX (MAIN ITEM ONLY)
HEIGHT
26.0 CM
WIDTH
13.0 CM
LENGTH
32.0 CM
WEIGHT
4.9 KG
Box / Blister Dimensions

ARCMASTER INVERTER WELDER 2200L -220V

Barcode
6009553204358
Brand
422
Colour
BLUE/BLACK
Made from / Composition
METAL
Warranty
24 MONTHS
What's in the box
• 1x Welding Machine
• 1x Set of Cables
• 1x Handheld Face Shield
• 1x Wire Brush
Features and Specifications
Features Manufactured to the highest standards using advanced IGBT-Inverter Technology.
• LCD Smart Display
• Compact, Lightweight & Portable
• DC Current Output
• Excellent Welding Characteristics
• Less Power ConsumPTion
• Robust Construction
• Hot Start
• ARC Force
• Welding rod size indicator
• Steel size indicator
• VRD
• LIFT TIG
• 2 Year Warranty Specifications Rated Input Voltage: AC220V±10% 1Phase Frequency(Hz): 50/60 Rated Input Current (A): 32.3A Output Current (P): 200A Rated Output voltage:28V No Load voltage: 60V VRD Voltage: 14V Duty Cycle: 60% Efficiency(%):85 Power Factor: 0.93 Protection Class: IP21S Cooling Method: Fan-cooled
